Deploying IBM Sterling B2B Integrator
On Openshift Container

Deploying IBM Sterling B2B Integrator On Openshift Container platform using the ICP Catalog UI

1. Introduction

As a part of the 6.0.3 release of IBM Sterling B2B Integrator, the b2bi container was qualified as a certified container by IBM. The certified container comprises of the Helm charts defined for deploying B2BI.

This blog covers details about deploying the certified container of IBM Sterling B2B integrator on Openshift Container Platform (OCP) integrated with IBM Cloud Private (ICP) using catalog UI provided by ICP.

1.1 About Openshift Container Platform

OpenShift Container Platform is an on-prem platform service that uses kubernetes to manage containers built on a foundation of Red Hat Enterprise Linux. Below is the link that provides steps to install OpenShift Container Platform along with the prerequisite details.

https://docs.openshift.com/container-platform/3.11/install/running_install.html

1.2 Openshift + ICP

IBM Cloud Private can be installed with Openshift to leverage the core services of ICP like catalog UI, metering and monitoring services etc. Below is the link to install ICP with OpenShift Container platform.

Post installation of ICP on Openshift, we need to setup the CLI tools for the cluster, these can be setup using the tutorial

https://www.ibm.com/support/knowledgecenter/en/SSBS6K_3.2.1/manage_cluster/cli_guide.html

2. Steps to install B2BI using ICP Catalog UI

2.1 Download the certified container

The certified container can be downloaded from IBM Passport Advantage using the steps mentioned in the below link.

Click here

2.2 Push the certified container to the cluster repository.

As mentioned in 1.2 post the installation of ICP on Openshift, we need to setup the CLI tools of ICP for cluster. Next, we need to push the the certified container downloaded in the previous step.

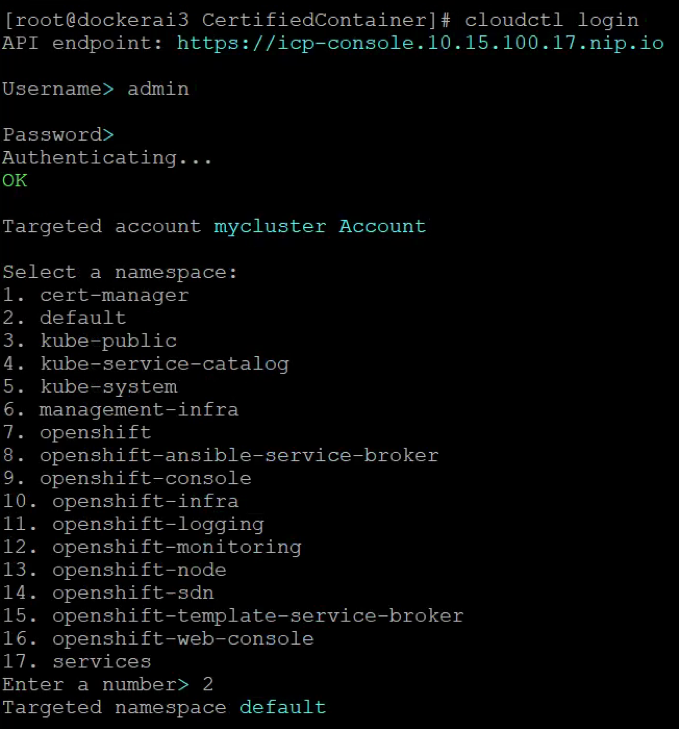

a. Login to the cluster console as an administrator user using cloudtcl login

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

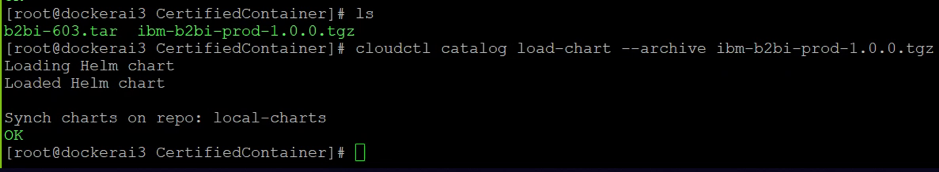

b. Push the certified container archive (ibm-b2bi-prod-1.0.0.tgz) downloaded from PA to the catalog UI using the following command

cloudctl catalog load-chart –archive ibm-b2bi-prod-1.0.0.tgz [–repo HELM_REPO_NAME]

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

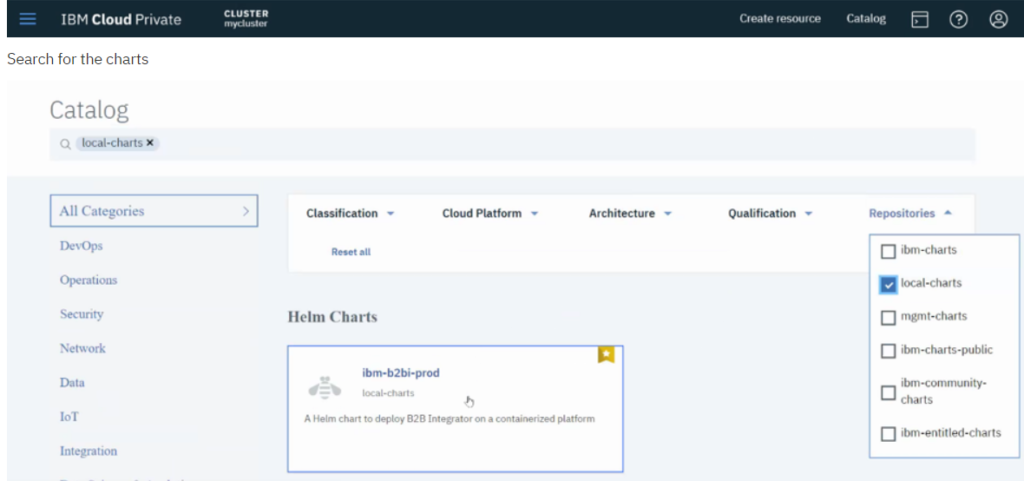

c. Verify that the charts are pushed from catalog UI by logging into the ICP Catalog UI, navigate to catalog.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

2.3 Install B2BI using UI.

Once the charts are pushed and verified as mentioned in 2.2, next let us deploy b2bi using the catalog UI.

2.3.1 Navigate to the catalog tab on the ICP catalog UI, click on the ibm-b2bi-prod charts.

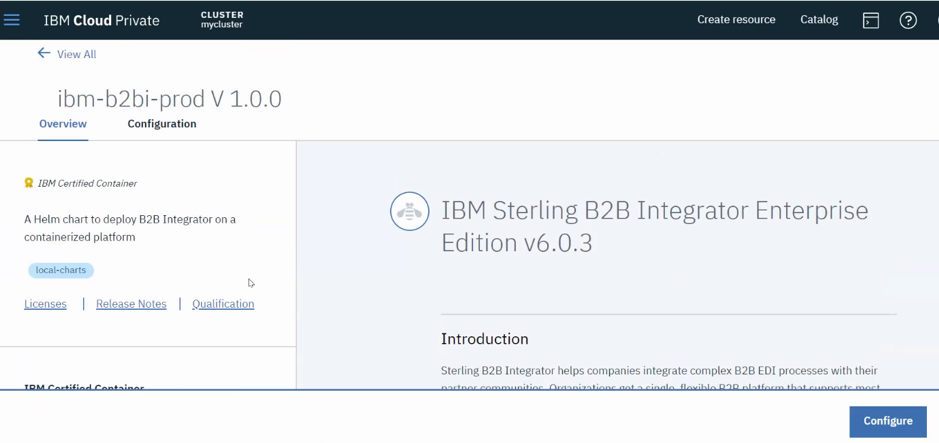

2.3.2 There are two tabs displayed overview and configuration

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

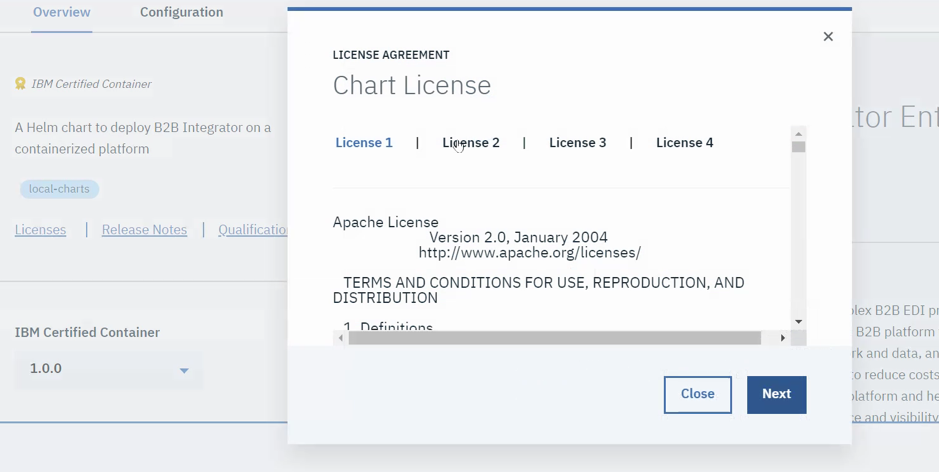

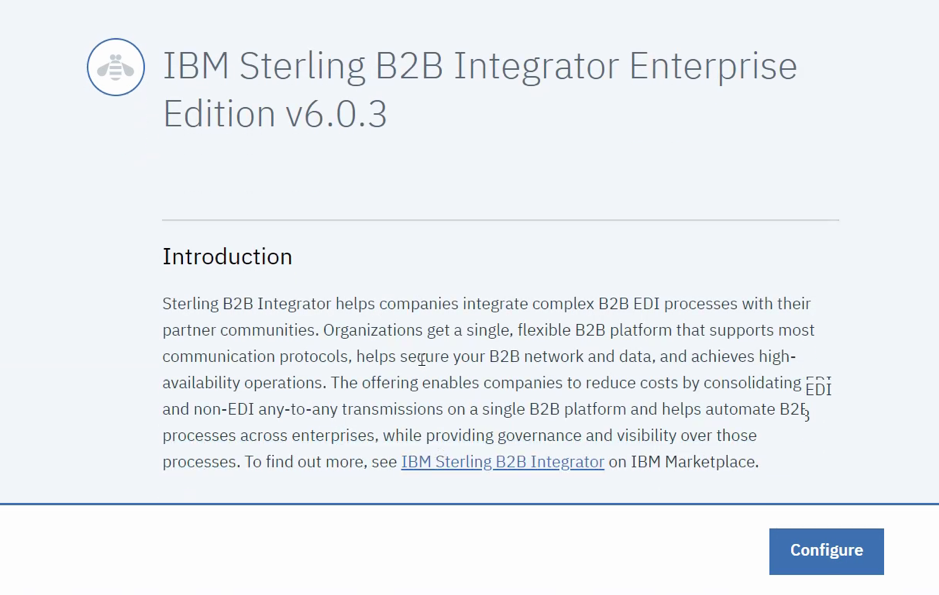

The overview tab lists all the details about the installation like the versions available, licensing details etc.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

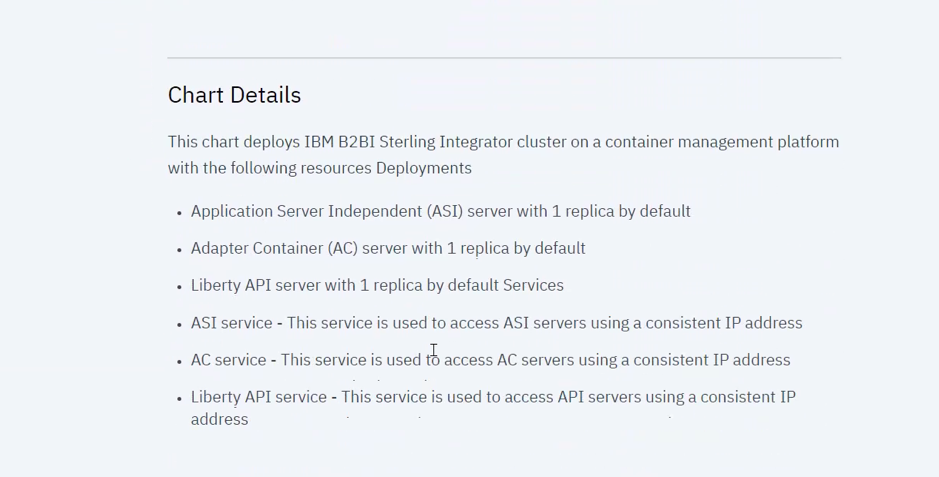

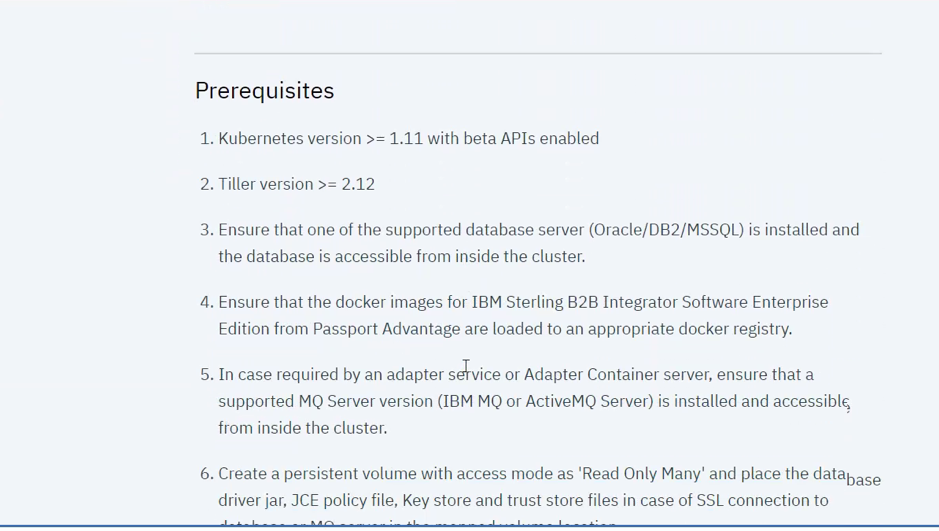

There are also installation details like pre-requisites to be done, default settings please go through these and setup the requirement as mentioned.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,
Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,
Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

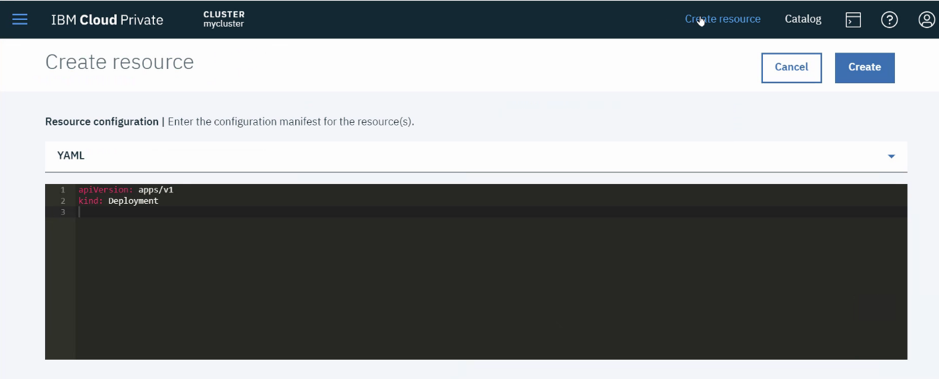

As a part of pre-requisites, we need to create certain Kubernetes resources like secrets, persistent volumes, we can do them by using the create resource option from the UI as shown below:

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

Paste the yaml contents in the text area highlighted about and click on create, the resource will be created.

Click on Configure button to go to the configuration tab.

The configuration tab requires user-input which is explained in the next section.

2.3.3 Configuration tab has three sections.

The configuration section is used to provide different user-input that are required to setup B2BI. It is divided mainly into 3 sections as shown below:



2.3.3.1 Configuration

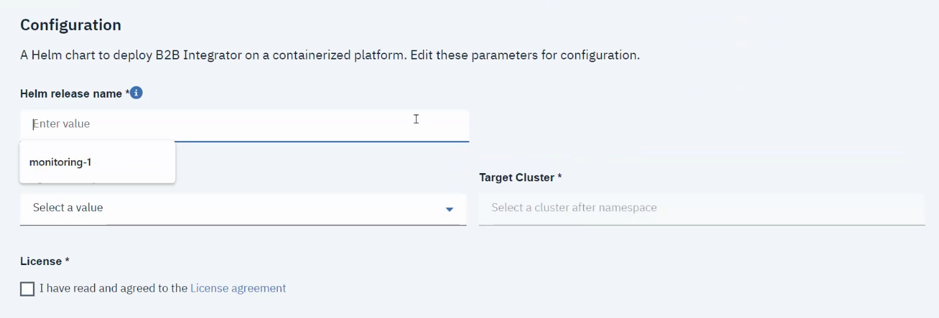

This Section mainly contains details related to release like the release name, namespace etc.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

2.3.2.2 Parameters

This Section is for user-inputs related to B2BI, there are basically two sections here

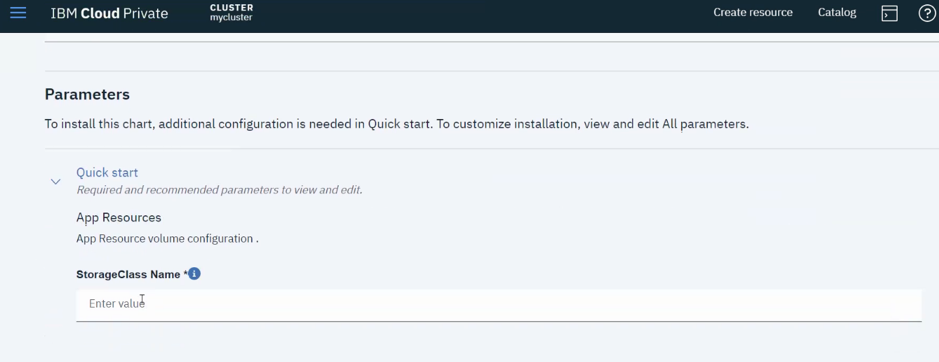

Quick Start

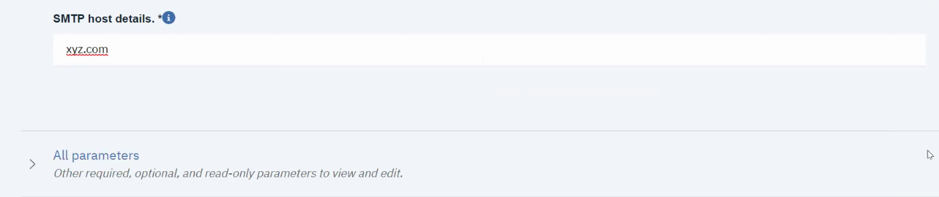

The Quick Start section displays the mandatory parameters that are required to setup B2BI, below is the list of few mandatory parameters

  1. StorageClass Name
  2. Database Server Vendor
  3. Database Host
  4. Database Port
  5. Database User
  6. Database Name
  7. Database Secret
  8. Database Driver
  9. Email Address
  10. SMTP host details
  11. System Passphrase
Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

All parameters

The All parameters section includes the other required, optional parameters which have been provided with a default value, user can refer to the configuration section in the overview tab for details about these parameters.

  1. Image tag
  2. Image Repository
  3. B2BI Image Pull Secret
Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

Note:

  1. The details of all the parameters are provided in the Overview section.
  2. The parameters section is further divided logically

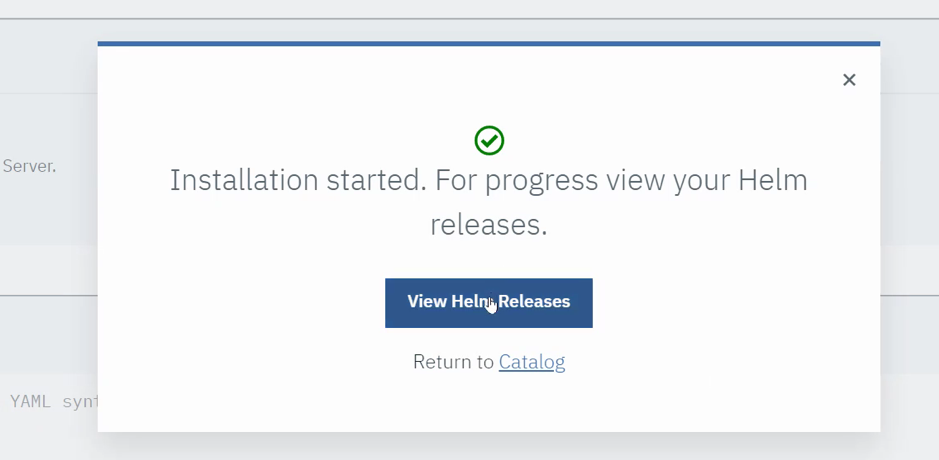

2.3.4 Once all the mandatory and necessary parameters are updated, click on configure button to setup the installation. If everything is correct then a screen as shown below will appear. Once can click on the hyperlink – View Helm releases to monitor the installation.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

2.4 Verify the installation.

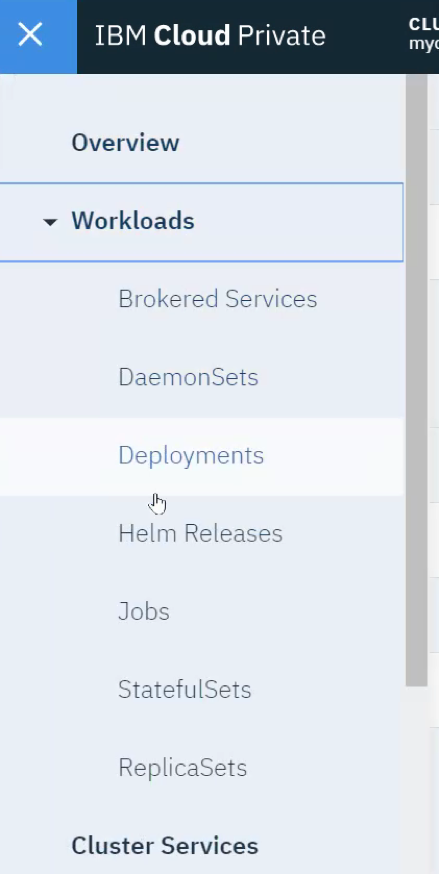

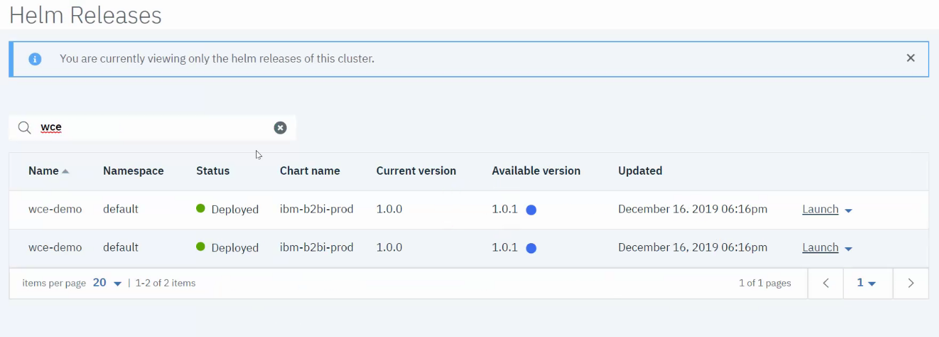

At the end of the installation, if it is successful a helm release gets created with name specified, we can monitor this by click on “View Helm Releases” button as shown in the previous section or go to Menu >> Workloads >> Helm Releases as show below and select the release

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

This Menu can be used to monitor different Kubernetes resources that get created as a part of this deployment.

For Eg. Statefulsets, pods, pvcs, services etc

3. Deployment Life cycle (Upgrade/Rollback/Delete).

The ICP Catalog UI provides and option to upgrade, rollback and delete a release.

3.1 Upgrade

If the user wishes to upgrade certain configurations or to a certain image it can be done using the upgrade option provided. The user must push the newer version of b2bi charts using the steps described in steps 2.1 and 2.2.

Go to Menu > Workloads > Helm releases

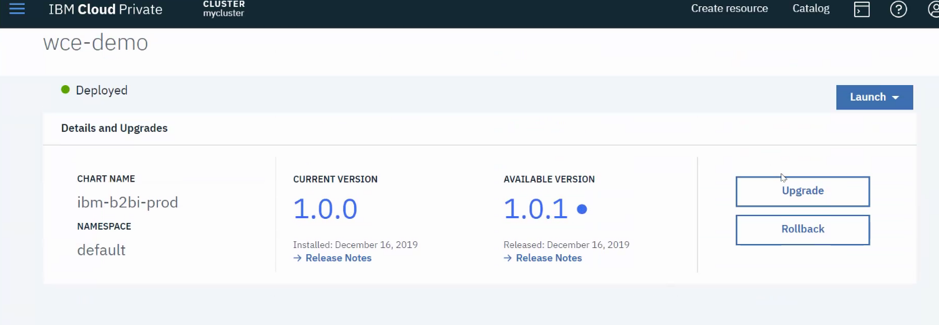

Select the release you are willing to upgrade. The Following UI will be seen.

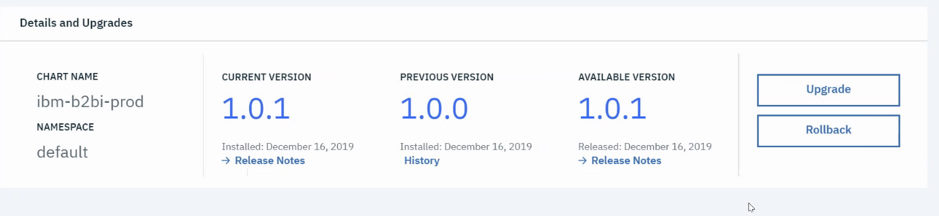

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,
Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

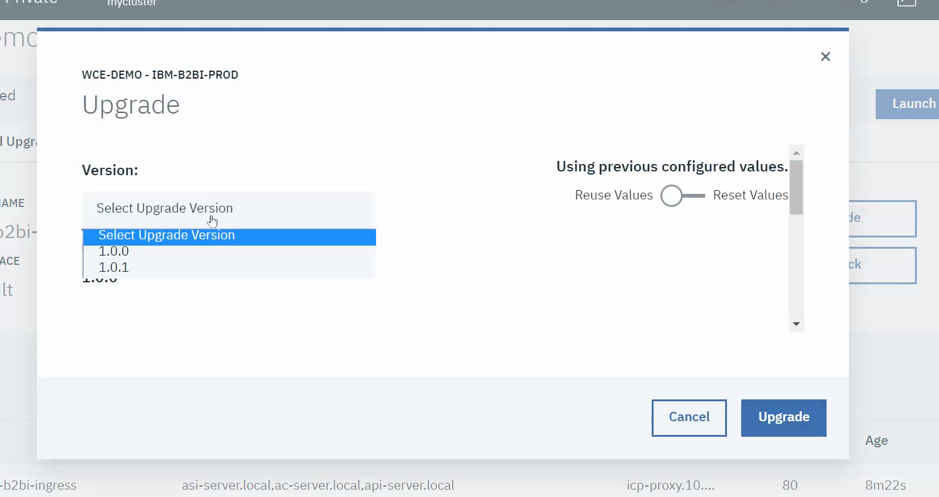

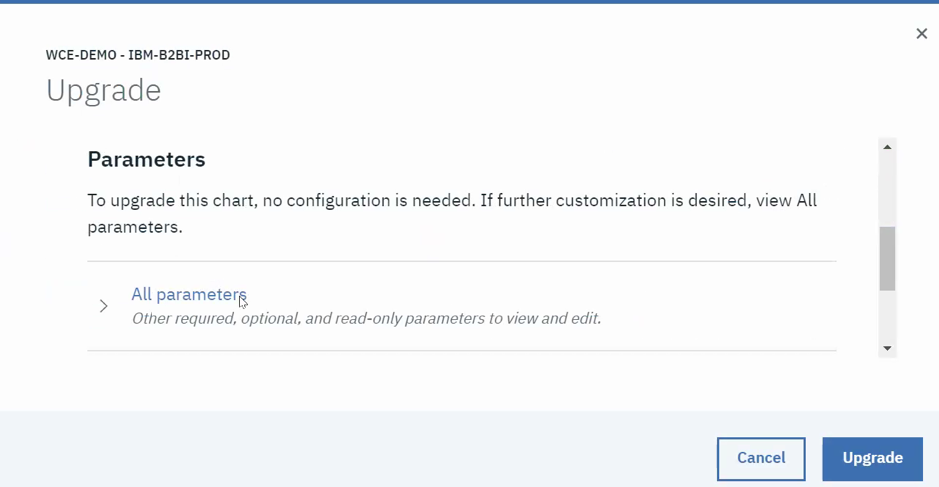

Select the upgrade option, an inline window will open which will ask for the details, select the upgrade version from the drop down.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

Once selected the parameters section will made available, the user should update the parameter that the user wishes to change for this release.

For eg. The user can change the number of replicas, the memory request, the image tag etc.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

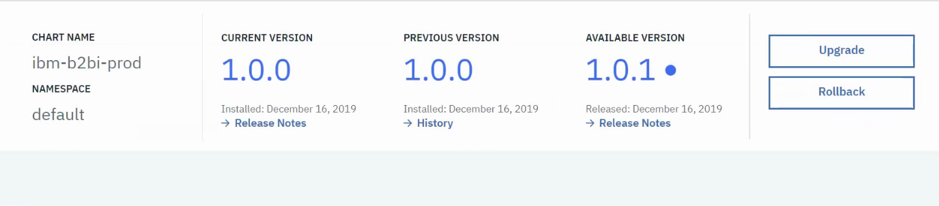

Once the required parameters are changed select Upgrade button. Post upgrade the inline window gets closed and the current helm release UI will be updated as shown below:

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

3.2 Rollback

Post upgrade, the user can also rollback to a previous version of the release.

Go to Menu > Workloads > Helm releases

Select the release you are willing to rollback. The Following UI will be seen.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

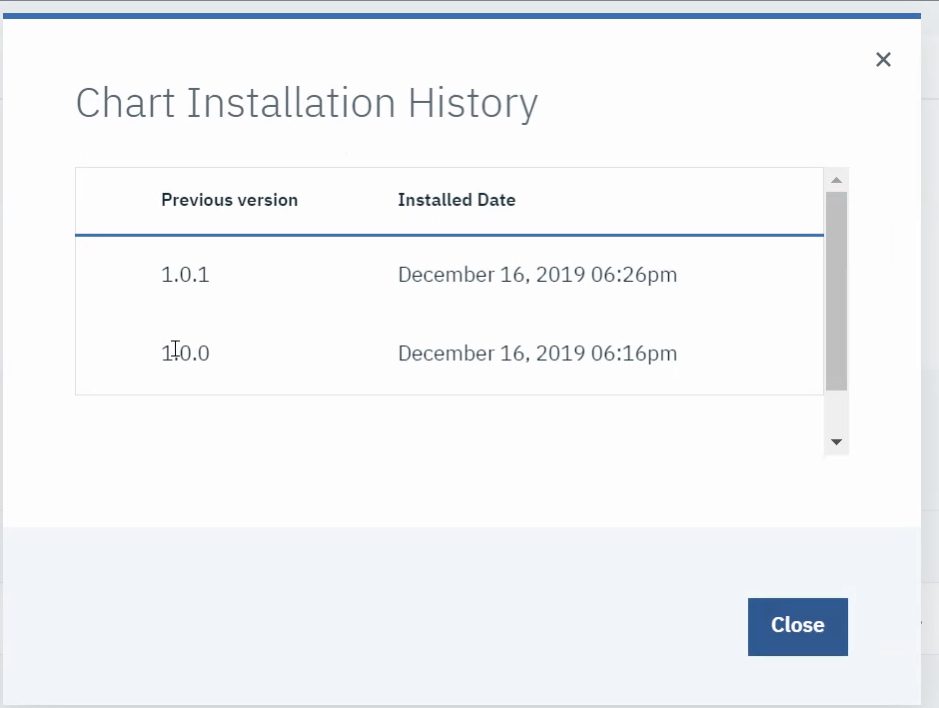

Click on History, this will show the upgrade history with the time stamp.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

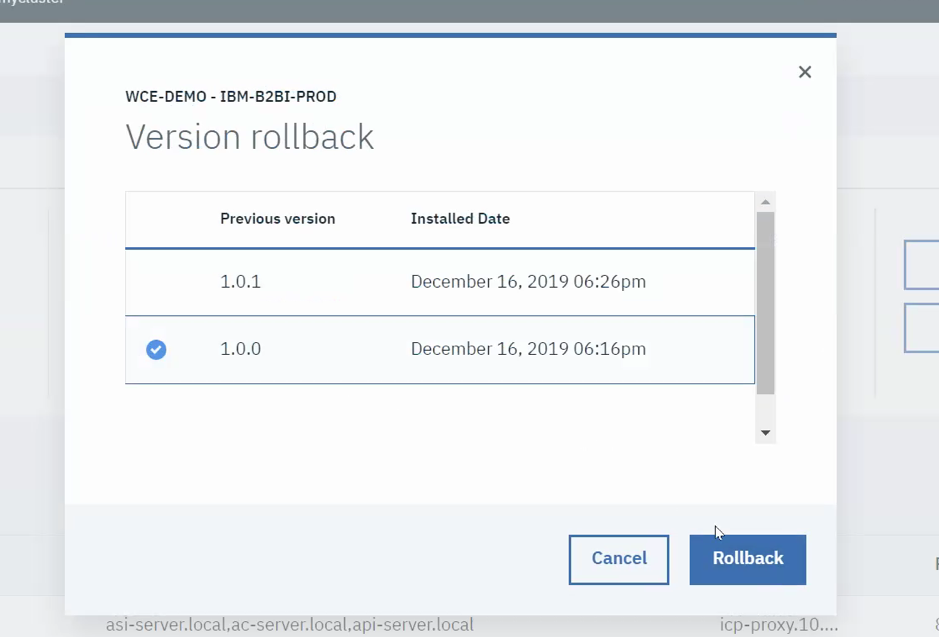

Close this and select rollback, from the options select the version you wish to roll back to and click Rollback

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

The release UI will be updated as shown below.

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

3.3 Delete

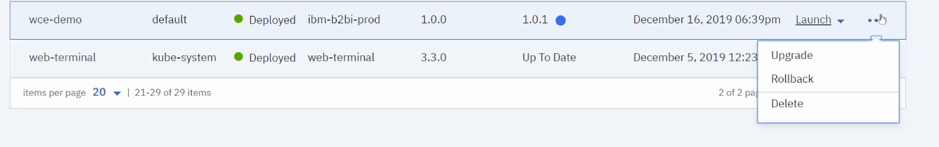

The deployed release can also be deleted using the delete option as shown below:

Deploying IBM Sterling B2B Integrator On Openshift Container, IBM, Pragmaedge, Sterling Integrator, Sterling B2B Integrator, Openshift containers, Openshift,

4. More Reference Links
